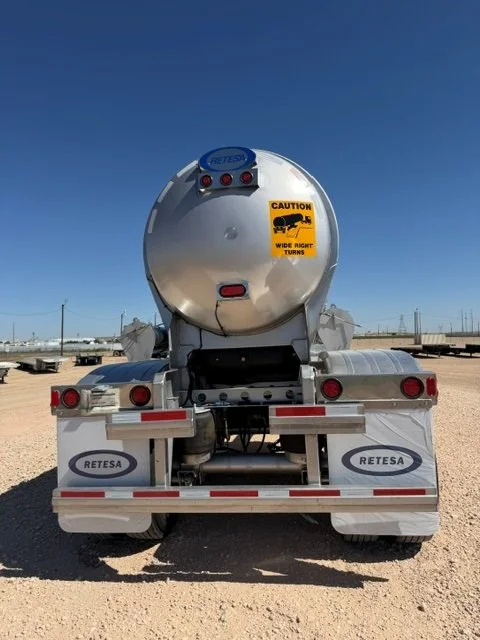

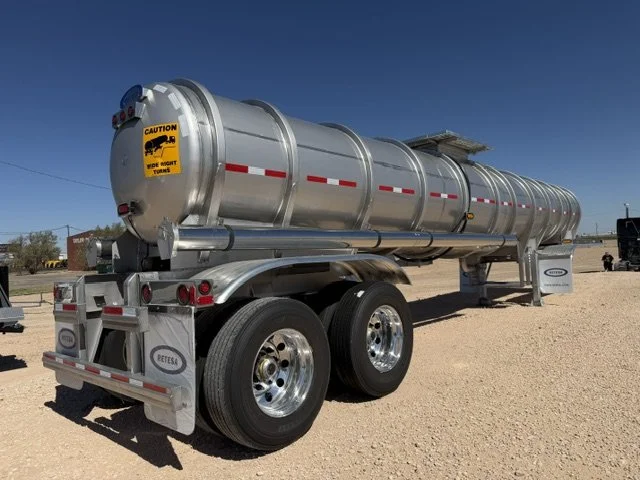

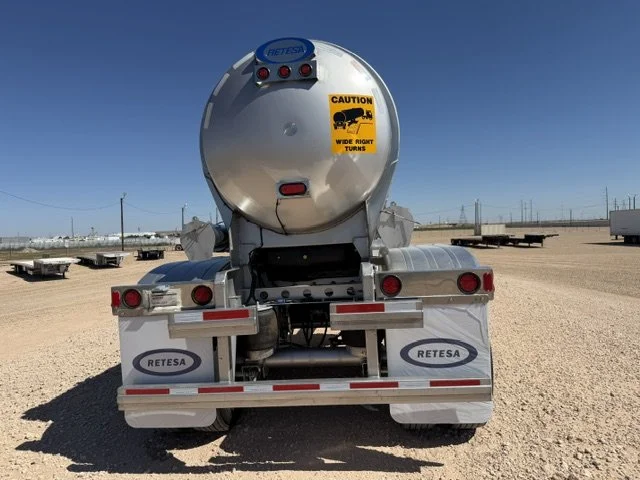

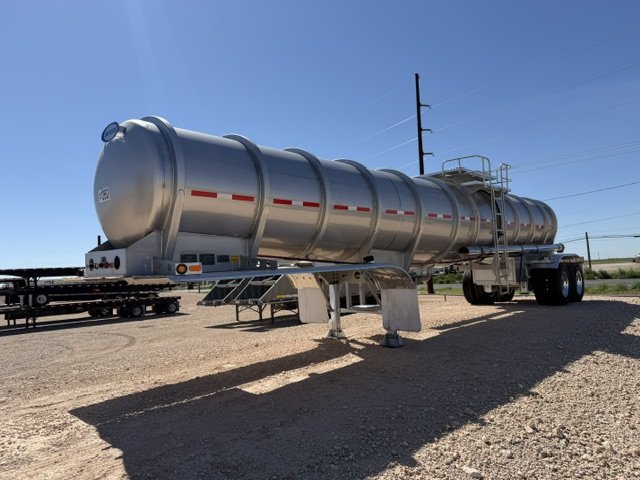

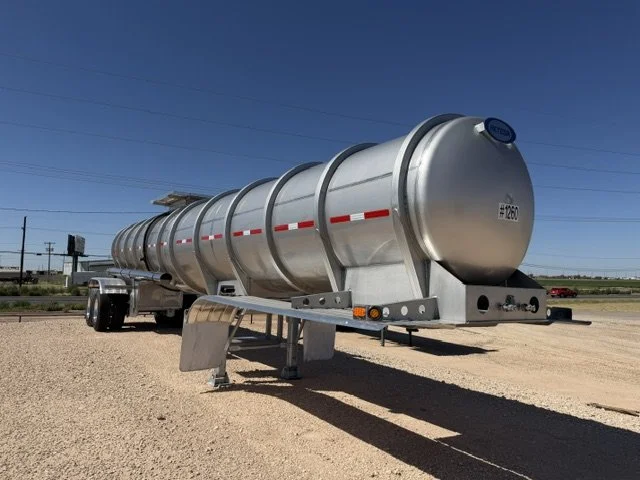

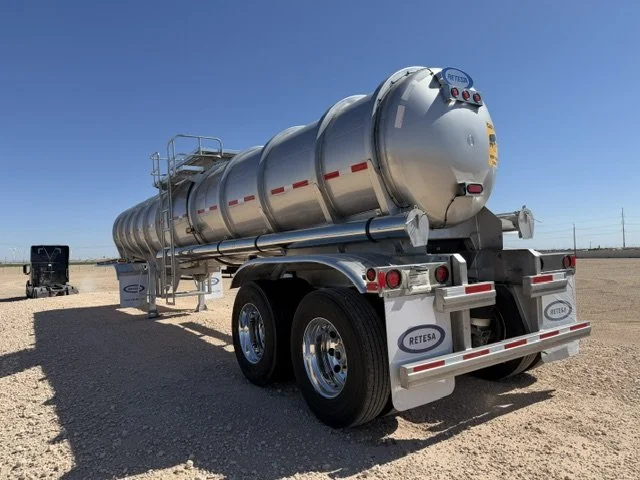

RETESA 5,600 Gallon Stainless Steel Fertilizer Tanker
A 42-foot, deep-drop stainless steel fertilizer tank trailer built with T-304-2B stainless steel, a 5,600-gallon capacity, tandem Hendrickson axles, aluminum wheels, and a heavy-duty discharge system designed for agricultural fertilizer transport.
Contact ATSR for current availability, pricing, delivery options, and additional equipment information.
Stainless Steel Construction With a Deep-Drop Tank Design
This RETESA fertilizer tanker combines a 5,600-gallon capacity with durable T-304-2B stainless steel construction. The 42-foot tank uses a double-conical configuration with a 12-inch drop, helping position the discharge sump near the center of the trailer.
The shell is constructed from 12-gauge stainless steel with 10-gauge flanged and dished heads. Two stainless steel internal baffles include flow cutouts and overturn openings, while the interior uses a snag-free, weld-tint-cleaned finish.
From fertilizer hauling operations to agricultural fleets looking for purpose-built liquid transport equipment, this RETESA tanker provides a straightforward stainless steel configuration backed by heavy-duty running gear and serviceable components.
RETESA Fertilizer Tanker
Purpose-Built Trailer Components
Stainless Steel Tank
T-304-2B stainless steel construction with a 12-gauge shell, 10-gauge heads, stainless exterior rings, bolsters, and cross members.
Deep-Drop Design
Double-conical tank configuration with a 12-inch drop and center-mounted rear-facing discharge sump.
Hendrickson Running Gear
Hendrickson INTRAAX 30,000-lb suspension paired with two 25,000-lb Hendrickson axles.
Aluminum Wheels
Eight 22.5 x 8.25-inch Alcoa aluminum disc wheels with BFGoodrich Highway Control T 11R22.5 tires.
Fertilizer Discharge
4-inch discharge reduced to 3 inches with stainless-disc butterfly valve, D adapter, stainless dust cap, and air blowout.
Service Access
20-inch full-opening manhole, aluminum ladder, upper walkway, spill dam, safety cage, hose carriers, and stainless cabinet.
RETESA Fertilizer Tanker Specifications
Model TIQ-2EA-D4221
Tank & Construction
- Product
- Fertilizer
- Capacity
- 5,600 gallons
- Length
- 42 feet
- Shape
- Double conical, 12-inch drop
- Tank Design
- Non-code
- Shell Material
- T-304-2B stainless steel, 12 gauge
- Heads
- T-304-2B stainless steel, 10 gauge, flanged and dished
- Interior Weld Finish
- Snag-free and weld-tint cleaned
- Exterior Weld Finish
- As welded
- Baffles
- Two T-304-2B stainless steel 10-gauge flared and dished baffles with flow cutouts and 3-inch overturn holes
Access & Tank Equipment
- Manhole
- One 20-inch full-opening manhole with six lugs and white neoprene gasket
- Exterior Rings
- 12-gauge stainless steel 2¾-inch hi-hat channel, continuously welded
- Frame
- Lightweight stainless steel construction
- Bolsters / Cross Members
- Stainless steel
- Spill Dam
- T-304-2B stainless steel with sloped floor and 1½-inch PVC drain hose
- Overturn Protection
- D.O.T. overturn protection at ends of spill dam
- Walkway
- 12-inch aluminum walkway with stainless tubular safety cage
- Ladder
- 18-inch aluminum ladder with knurled rungs, handrails, platform-style top step, and grab rails
- Heat
- None
- Insulation
- None
Chassis & Suspension
- Upper Coupler
- 3/8-inch heavy-duty steel with offset pin adjustable in 3-inch increments
- Landing Gear
- JOST two-speed with sand shoes and roadside crank
- Suspension
- Hendrickson INTRAAX, 30,000-lb capacity with manual dump valve
- Axles
- Two 25,000-lb Hendrickson 5-inch round axles with HM bearings and ABS sensor blocks
- Lift System
- Automatic lift system on front axle
- Hubs & Drums
- Hub-piloted, 10-hole hubs with outboard-mounted cast drums
- Oil Seals
- Stemco Guardian
- Bumper
- RETESA standard D.O.T. bumper
Brakes, Wheels & Tires
- Brake System
- Air-actuated 16½ x 7 x ¾-inch S-cam quick-change style
- Brake Chambers
- 30/30 TSE chambers
- Slack Adjusters
- Meritor automatic
- ABS
- Haldex 2S/1M
- Wheels
- Eight Alcoa 22.5 x 8.25-inch aluminum disc wheels
- Tires
- Eight BFGoodrich Highway Control T 11R22.5
- Fenders
- Contoured aluminum
- Mud Flaps
- Front and rear anti-sail mud flaps
Discharge & Fluid Equipment
- Discharge
- 4-inch diameter reduced from 4 inches to 3 inches
- Valve
- 3-inch butterfly valve with stainless steel disc
- Adapter
- D adapter with 3-inch stainless steel dust cap
- Valve Sump
- Center-mounted, rear-facing configuration with air blowout
- Vent
- 3-inch Girard threaded pressure-relief vent, 5 PSI
- Test Pressure
- 5 PSI
- Design Pressure
- Atmospheric
- Hydraulic Line
- None
Storage & Electrical
- Hose Carriers
- Two 8-inch diameter x 21-foot stainless steel hose carriers
- Cabinet
- Stainless steel, approximately 41" W x 24" H x 23" D
- Pump Platform
- Stainless steel platform located in front of cabinet
- Electrical
- 12-volt Grote system with 7-way ATA connector
- Lighting
- Stop, tail, turn, clearance, mid-tank, and high-mounted stop lighting
- Conspicuity
- FMVSS 108 conspicuity tape
- Certificate Holder
- Betts PS-1 mounted curbside on landing gear frame
- Paint
- Gray polyurethane paint on carbon-steel components only
Specifications shown are based on the RETESA manufacturer build specification for model TIQ-2EA-D4221. Equipment and configuration should be confirmed with ATSR before purchase.
Find the Right Tank Trailer for Your Operation
ATSR works with commercial and agricultural customers looking for specialized trailers and transportation equipment. Contact our team for current availability, equipment specifications, financing information, and delivery options.
RETESA Fertilizer Tanker FAQ
What is the capacity of this RETESA fertilizer tanker?
The manufacturer specification lists a 5,600-gallon capacity.
What material is the tank constructed from?
The tank uses T-304-2B stainless steel, including a 12-gauge shell and 10-gauge flanged and dished heads.
How long is the RETESA fertilizer tank trailer?
The manufacturer lists the tank length at 42 feet.
What suspension does the tanker use?
It is equipped with a Hendrickson INTRAAX suspension rated at 30,000 pounds and includes a manual dump valve.
What type of discharge system is installed?
The tanker uses a 4-inch discharge reduced to 3 inches with a 3-inch butterfly valve, stainless steel disc, D adapter, stainless steel dust cap, center-mounted rear-facing sump, and air blowout.
How do I get pricing or availability?
Contact ATSR for current pricing, availability, equipment details, and transportation options.
